Engine Core Components Used Good Second Hand SYM5460THB Concrete Pump

Product Categories

HUNAN BEST TECHNOLOGY TRADE CO.,LTD

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Place of Origin : China

Model Number : SYM5460THB

Packaging Details : Standard packing

Supply Ability : 10000 Piece/Pieces per Month

Price : $115,000.00/sets 1-4 sets

Applicable Industries : Building Material Shops, Machinery Repair Shops, Construction works , Energy & Mining

Showroom Location : None

Power Type : Other

Power : 348/1900kW/rpm

Weight : 46000 KG

Max. vertical conveying distance : 67.3M

Max. horizontal conveying distance : 62.2M, 37m

Productivity : 180m3/h, 180 m3/h

Machinery Test Report : Provided

Video outgoing-inspection : Provided, Provided

Core Components : Pressure vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC

Year : 2021

Working hours : 40001-50000

Product name : Concrete Pump Truck

Brand : SANY

WHATSAPP : +86 17375708691

Dimension(L*W*H) : 13900*2550*4000mm

Total weight : 46000KG

Engine model : D13C6-480E0

Maximum net engine power : 348/1900kW/rpm

Port : Zhejiang,Guangzhou

MOQ : 1pc

Contact Now

Complete vehicle parameters
Overall length	13900mm
Overall width	2550mm
Overall height	4000mm
Total weight	46000kg
Pumping system parameters
Theoretical concrete displacement low pressure	180m³/h
Theoretical concrete displacement high pressure	125m³/h
Theoretical pumping pressure low pressure	8.3Mpa
Theoretical pumping pressure high pressure	13Mpa
Theoretical pumping times low pressure	29
Theoretical pumping times high pressure	19
Inner diameter of conveying cylinder	260mm
Stroke of conveying cylinder	2100mm
Hydraulic system	open
System oil pressure	32Mpa
Oil tank volume	780L
Water tank volume	700L
Conveying pipe diameter	125mm
Length of hose at end	3m
End hose diameter	125mm
Chassis parameters
Chassis brand	sany
Chassis model	SYM5460THB1F
Engine model	D13C6-480E0
Maximum net engine power	348/1900kW/rpm
Emission standard	National VI
Fuel tank volume	600L
Displacement	12.94L
Max speech	90km/h
Key parameters
Number of bridges	4
Chassis	sany
Vertical height of boom	59.1m

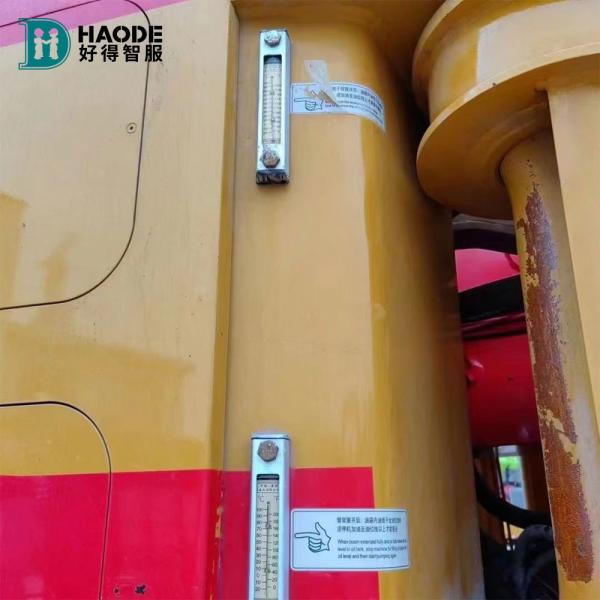

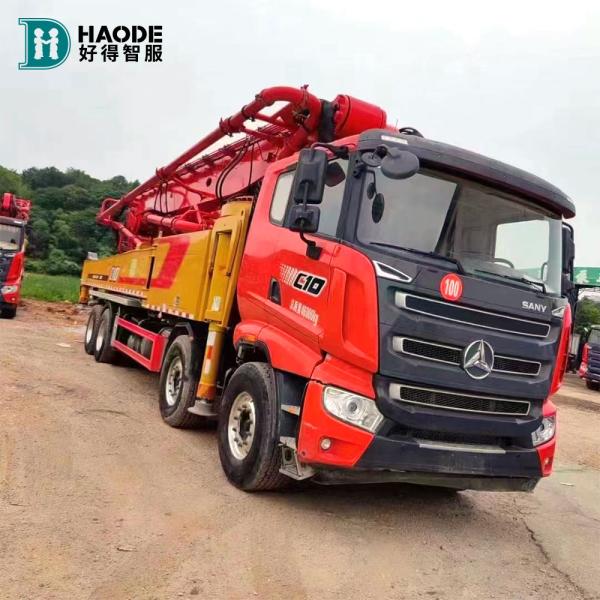

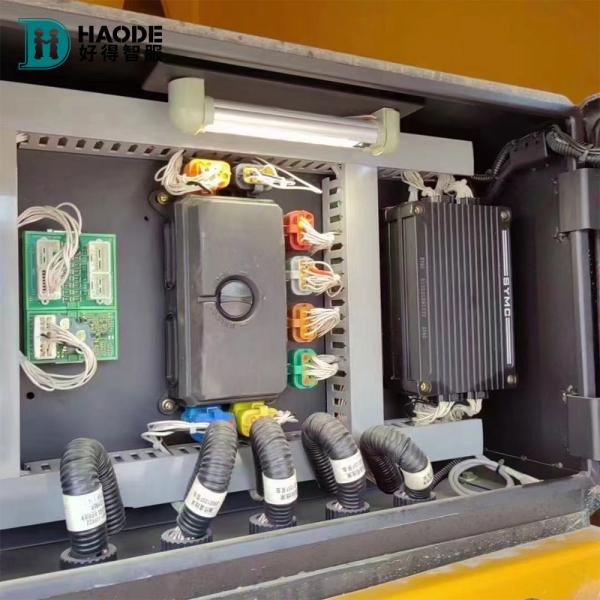

Engine Core Components Used Good Second Hand SYM5460THB Concrete Pump Images
