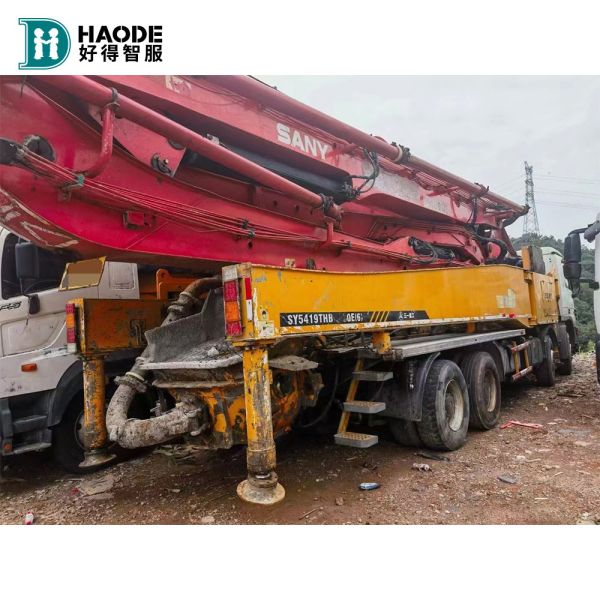

Building Material Shops Truck Pump For SANY Zoomlion Concrete Pump 56 Meter

Place of Origin : China

Model Number : sany5419

Packaging Details : Standard packing

Supply Ability : 10000 Piece/Pieces per Month

Price : $49,000.00/sets 1-2 sets

Applicable Industries : Building Material Shops, Machinery Repair Shops, Construction works , Energy & Mining

Showroom Location : None

Power Type : Diesel

Power : 300kW/1800rpm

Weight : 41760 KG

Max. vertical conveying distance : 56m

Max. horizontal conveying distance : 51m

Productivity : 170m3/h

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Core Components : Pressure vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC

Year : 2012

Working hours : 10001-20000

Product name : SY5419THB 56E

Vehicle parameters : 13850*2500*4000mm

Engine power : 300kW/1800rpm

Engine model : OM501LA 3/17

Emission standards : Euro III.

dead weight : 41760kg

Maximum speed : 80km/h

Displacement : 11.946 L

Hydraulic system : Open

System oil pressure : 32MPa

Port : Zhejiang,Guangzhou

MOQ : 1pc

Contact Now

Vehicle parameters	Length	13850mm
		Overall width	2500mm
		Overall height	4000mm
		dead weight	41760kg
Boom leg parameters	Vertical height of the boom	56.0m
		Horizontal length of the boom	51.0m
		Vertical depth of the boom	36.6m
		Minimum unfolded height	15.2m
		First arm length	11400mm
		corner	90°
		Second section arm length	9230mm
		corner	180°
		Third section arm length	8750mm
		corner	180°
		Fourth section arm length	11060mm
		corner	240°
		Section 5 arm length	11560mm
		corner	220°
		Turntable rotation angle	±360°
		Front leg spread width	9300mm
		Rear leg spread width	11670mm
Pumping system parameters	Concrete theoretical displacement Low pressure	170 m3/h
		high pressure	120 m3/h
		Theoretical pumping pressure Low pressure	8.3 MPa
		high pressure	12MPa
		Theoretical pumping times Low pressure	24.5 times/minute
		high pressure	17 times/min
		Conveying cylinder inner diameter	260mm
		Conveying cylinder stroke	2200mm
		Hydraulic system	Open
		System oil pressure	32MPa
		Fuel tank volume	700L
		Water tank volume	600 L
		Conveying pipe diameter	125mm
		End hose length	3m
		End hose diameter	125mm
Chassis parameters	Chassis model	BENZ Actros 4141
		Engine model	OM501LA.Ⅲ/17
		Engine power	300kW/1800rpm
		Emission standards	Euro III.
		Fuel tank volume	400 L
		Displacement	11.946 L
		Maximum speed	80km/h
		Braking distance	≤10m/30kph

Building Material Shops Truck Pump For SANY Zoomlion Concrete Pump 56 Meter

1. Our Technology Team Delivering Continuous Value to Our Partners We are not just traders! Our company team has been working in the construction machinery industry for nearly 20 years, and has been engaged in technical work in leading companis such as Sany.Zoomlion and Putzmeister for many years.

2. Reliable Maintenance Service Team We have our own construction machinery
maintenance and after-sales service team, which can provide overseas partners with the maintenance, remanufacturing, accessories,online and offline services.

3. Professional And Enthusiastic Sales Team Our sales team has been trained in professional product
knowledge. We enthusiastically provide various construction machinery and related consulting services to overseas partners and guarantees the product value of overseas customers.

Building Material Shops Truck Pump For SANY Zoomlion Concrete Pump 56 Meter Images
