China Famous Brand SDLG 30 Ton Medium Excavator E6300F Crawler Excavator with Attachments for Sale

Name: China Famous Brand SDLG 30 Ton Medium Excavator E6300F Crawler Excavator with Attachments for Sale
Brand: Caterpillar
Price: 80000 USD

Brand Name : Caterpillar

Model Number : E6300F

Certification : SGS

Place of Origin : CHINA

MOQ : 1

Price : $80000

Payment Terms : L/C, D/A, D/P

Supply Ability : negotiable

Delivery Time : 8 work days

Packaging Details : bare bones

Operating Weight : 29300 kg

Bucket capacity : 1.4 m³

Working hours : 1600

Year : 2021

Machine Weight : 29300 kg

Product name : Used Crawler Excavator

Power : 170 KW

Maximum Digging Height : 9620mm

Maximum Digging Depth : 6830mm

Max Digging Radius : 10160mm

Contact Now

Overall dimension
Overall width of upper assembly	2890mm
Overall width	3190mm
Overall height	3430mm
Tail swing radius	3050mm
Overall height of engine hood	3030mm
Ground clearance of counterweight	1145mm
Wheelbase	4015mm
Crawler length	4870mm
Crawler gauge	2590mm
Crawler pad width	600mm
Min. ground clearance	480mm
Overall length	10500mm
Overall height of boom	3430mm
Overall parameters
Bucket capacity	1.4m³
Overall operating weight	29300kg
Max. excavation force	193.5KN
Slew speed	10.7r/min
Traveling speed (low/high)	3.4/5.4km/h
Average ground pressure	56.3kPa
Max. digging radius	10160mm
Max. digging depth	6830mm
Max. digging height	9620mm
Max. dumping height	6690mm
Min. front slewing radius	4220mm
Engine
Model	E6300F
Type	Four-stroke,inter-cooled, supercharged
Rated Power@Revolution Speed	170kW
Displacement	7146mL
Cylinder bore × stroke	108*130mm
Emission standard	GB20891-2014 China Phase III
Rated fuel consumption	230g/kw.h
Max. torque	1080N.m
Traveling/swing system
Qty. of carrier rollers (single side)	2
Qty. of track rollers (single side)	9
Traveling brake type	Wet disc brake
Swing mode	Hydraulic drive internal tooth single-row ball-bearing
Swing brake type	Wet disc brake
Hydraulic system
Hydraulic control type	Pilot proportional control valve
Hydraulic system type	Dual pump constant power negative flow control system
Max. flow	2*263+18L/min
Operating pressure	330kgf/cm2
Fill capacity
Fuel	470L
Engine oil	26.5L
Hydraulic oil	370L
Antifreeze	2×3.5L

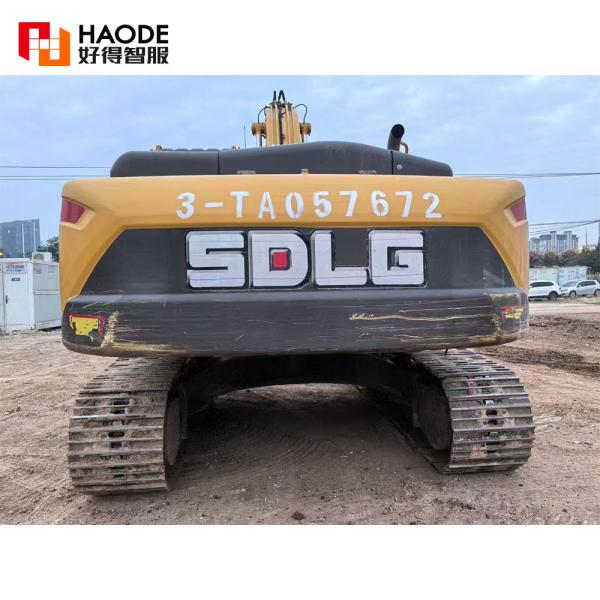

China Famous Brand SDLG 30 Ton Medium Excavator E6300F Crawler Excavator with Attachments for Sale Images
